8 hole Double Nozzles

Alternative Parts, Inc. (API) helps industrial operators find high-quality replacement parts, including eight-hole double nozzles. Our manufacturing process produces nozzles with the same dimensions, raw materials, tolerances and other specs as OEM parts for a fraction of the price. Our line of eight-hole double-nozzle replacements is designed to keep your Mitsubishi laser system running.

We have a wide in-stock selection, so you can find what you need. You can also contact API for unlisted parts or for support in choosing the right part.

What Are 8-Hole Double Nozzles?

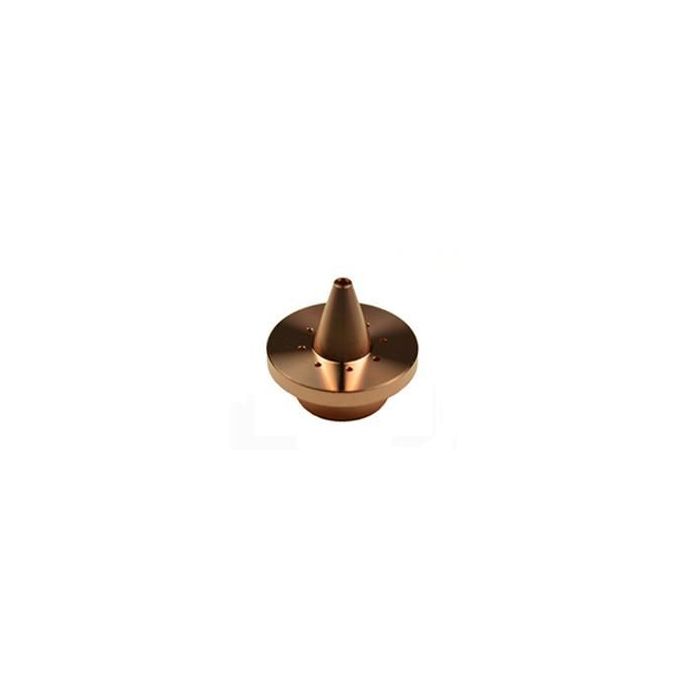

An eight-hole double nozzle is a laser-cutting tip with an inner and an outer layer. The center bore directs the central gas jet and the laser. The outer layer has eight carefully calibrated holes that create a gas curtain during laser cutting. This gas curtain cools the laser head, reduces turbulence, ejects dross and protects the lens, creating high cut quality and efficiency.

For laser systems used to cut steel, especially carbon and mild steel, eight-hole double nozzles help control gas flow, preventing debris, minimizing thermal damage or oxidation and supporting clean edges. When properly calibrated and selected for gas requirements and material thickness, they can also protect your system from heat damage.

When to Replace Your Nozzles

Replacing your eight-hole nozzles may be necessary when:

• Holes get warped: When nozzle holes get elongated, chipped or damaged, you may not get the gas curtain you need.
• Debris builds up on the tip: Solidified molten metal on the tip usually means a replacement is in order.
• You see physical damage: Dents, deep scratches and other wear can disrupt gas flow.
• Cut quality and consistency decline: Once you’re no longer cutting through material cleanly or notice dross, rougher edges, erratic sparking, inconsistent cut widths or other performance issues, a new nozzle can support high-quality cutting results.

Our Collection of 8-Hole Double Nozzles

For Mitsubishi nozzle replacements, API is a one-stop solution. We have a wide range of sizes for your laser systems:

• 1.5mm (Mitsubishi # 71800023/bq943d156h01, part # MI5608)
• H17mm (part # MI5609, Mitsubishi # w270, additional reference # MB316-270/L280)
• 2.0mm (part # MI5610)
• GX-F double nozzle 4.0 (part # MI5526 and Mitsubishi # d08 / cpcl2540mms / 486453 / bq870d913g01)

All our parts, including our nozzles, are designed to OEM specifications and are competitively priced, with discounts up to 70%.

Order Replacement Mitsubishi Double Nozzles

When you notice a decrease in performance quality or obvious signs of nozzle damage, turn to API. Get the parts you need with same-day shipping on in-stock parts and a vast inventory. Enjoy steep discounts on high-quality parts designed to be compatible with your laser systems.

Our factory-trained technicians are available to answer your questions, confirm parts compatibility and help you identify the right size. Browse and order online or contact our team with requests for unlisted parts.
